Air Handling Units (AHU) & HVAC Solutions
Reliable air handling and HVAC solutions engineered for demanding environments. Custom airflow capacities from 500 CMH to 200,000 CMH conforming to GMP and ISO guidelines.
Industrial Air Handling Units
Air handling units connect to ductwork ventilation systems to condition, filter, and distribute air throughout controlled facilities. As the heart of cleanroom climate and cleanliness control, MAPFIL AHUs regulate room positive/negative pressure, temperature, and relative humidity with extreme precision.
Manufactured following GMP standards in Mumbai, our AHUs serve commercial, pharmaceutical, healthcare, and semiconductor industries from local to global markets.
Integrated Air Handling Equipment

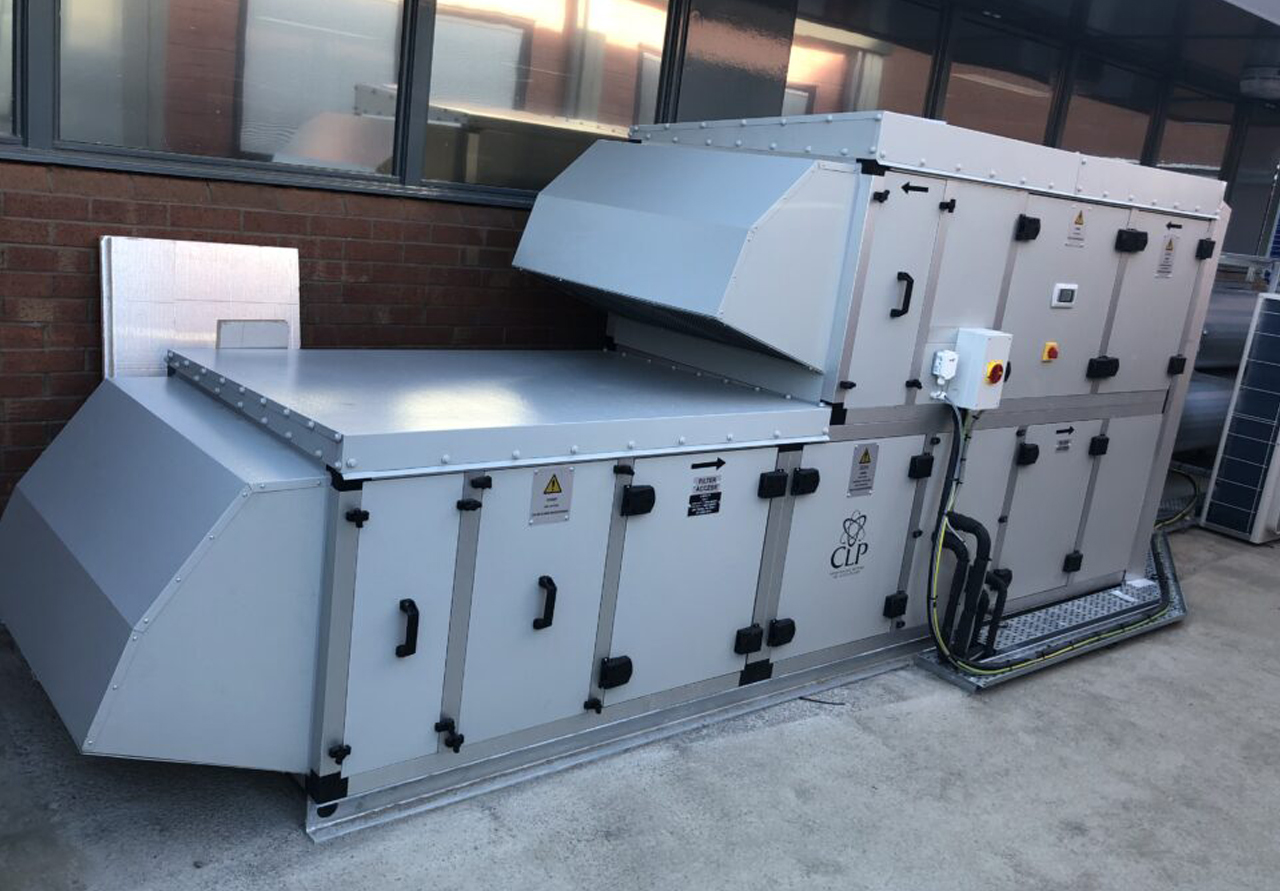

Air Handling Unit (AHU)
Double skin modular AHU with extruded aluminum thermal-break framing and injected PUF insulation for zero condensation.
HVAC Ducting & Insulation
High-grade galvanized iron (GI) rectangular and spiral ductwork insulated with closed-cell nitrile rubber or fiberglass.
Control Panel for AHU
Intelligent PLC & VFD starter panels providing automatic fan speed modulation, airflow interlocks, and BMS integration.
Outdoor Units & Terminal Boxes
High-ambient air-cooled condensing units and ceiling terminal HEPA boxes with volume control dampers.
AHU Technical Parameters
| MOC (Material of Construction) | Pre-Coated Galvanized Iron (GI), Aluminum Profile, or Stainless Steel SS-304 |
|---|---|
| Panel Insulation Thickness | Rigid Polyurethane Foam (PUF) — 25mm, 45mm, or 60mm with density of 40 kg/m³ |
| Framework | Extruded Hollow Aluminum Profile with Thermal Break & Non-Thermal Break options |
| Airflow Capacity | 500 CMH to 200,000 CMH (Custom configured per heat load & cleanroom ACPH) |
| Static Pressure | 25mm WG to 200mm WG |
| Internal Provisions | Mixing Chamber with motorized air dampers, Pre-filter Section (10μ), Fine Filter Section (5μ), DX / Chilled Water (CHW) Cooling Coil Section, SS 304 Drain Tray, Hot Water / Electric Reheaters, Backward/Forward Curved Fans / Electronically Commutated (EC) Plug Fans |
| Automation & Controls | VFD (Variable Frequency Drive), Differential Pressure Gauges (Magnehelic), Temperature & RH Sensors |
